Single ear hose clamp

Product Tags : Ear clamps

Product Attributes :

Size: 7-7mm to 24-25mm

Bandwidth: 5mm 7mm

Thickness: 0.5 / 0.6mm

Material: stainless steel 304(W4)

Clamps Type: Single Ear

Product Description

Description--------------------------------------------------------------------------------------------------------------------

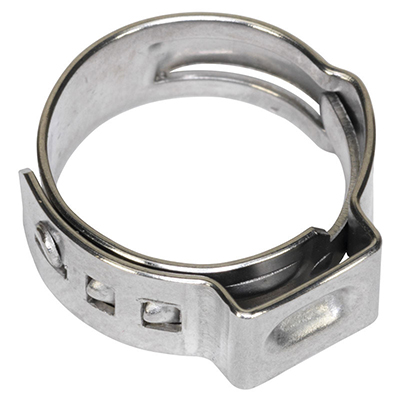

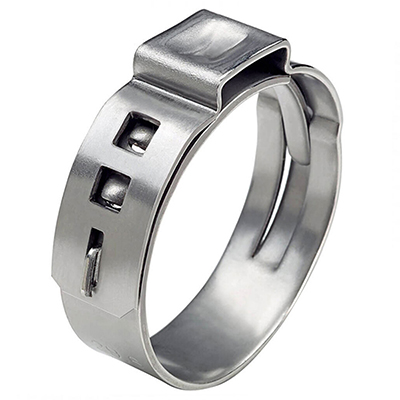

single ear hose clamp has features of tongue in guide slot design, providing even pressure,360°degree sealing, small size, light weight and big clamping force, and the inner circumference narrow band, concentrated seal compression specially formed strip edges reduce the risk of damage to the part being clamped lightweight design.

The whole Single Ear Hose Clamp (including the band, housing and screw) are all made of premium heavy duty 304 stainless steel material.
Salt resistant, anti rust, anti-corrosion, waterproof, oil-proof. Clamps are sturdy, strong and reliable

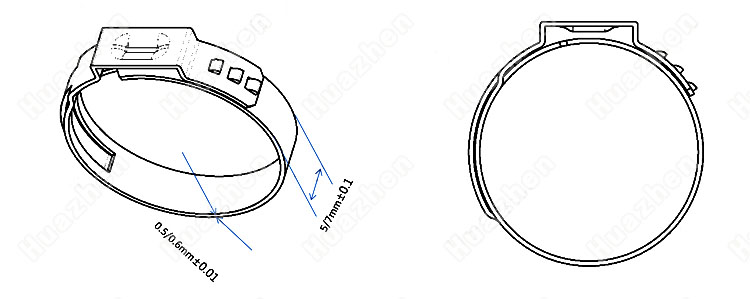

Dimension---------------------------------------------------------------------------------------------------------------------

505R SERIES
Item	Dimension Range	Band Width	Band Thickness
006.5-505R	5.5-6.5	5	0.5
007.0-505R	5.8-7	5	0.5
008.0-505R	6.8-8	5	0.5
008.7-505R	7-8.7	5	0.5
009.0-505R	7.3-9	5	0.5
009.5-505R	7.8-9.5	5	0.5
010.0-505R	8.3-10	5	0.5
010.5-505R	8.8-10.5	5	0.5
010.9-505R	9.2-10.9	5	0.5
011.3-505R	9.6-11.3	5	0.5
011.8-505R	10.1-11.8	5	0.5

706R SERIES
Item	Dimension Range	Band Width	Band Thickness
011.9-706R	9.4-11.9	7	0.6
012.3-706R	9.8-12.3	7	0.6
012.8-706R	10.3-12.8	7	0.6
013.3-706R	10.8-13.3	7	0.6
013.8-706R	11.3-13.8	7	0.6
014.0-706R	11.5-14	7	0.6
014.5-706R	12-14.5	7	0.6
014.8-706R	12.3-14.8	7	0.6
015.3-706R	12.8-15.3	7	0.6
015.7-706R	13.2-15.7	7	0.6
016.2-706R	13.7-16.2	7	0.6
016.6-706R	14.1-16.6	7	0.6
016.8-706R	14.3-16.8	7	0.6
017.0-706R	14.5-17	7	0.6
017.5-706R	15-17.5	7	0.6
017.8-706R	14.6-17.8	7	0.6
018.0-706R	14.8-18	7	0.6
018.5-706R	15.3-18.5	7	0.6
019.2-706R	16-19.2	7	0.6
019.8-706R	16.6-19.8	7	0.6
021.0-706R	17.8-21	7	0.6
022.6-706R	19.4-22.6	7	0.6
023.5-706R	20.3-23.5	7	0.6
024.1-706R	20.9-24.1	7	0.6
025.6-706R	22.4-25.6	7	0.6
027.1-706R	23.9-27.1	7	0.6
028.6-706R	25.4-28.6	7	0.6
030.1-706R	26.9-30.1	7	0.6
030.8-706R	27.6-30.8	7	0.6
031.6-706R	28.4-31.6	7	0.6
033.1-706R	29.9-33.1	7	0.6
034.6-706R	31.4-34.6	7	0.6
036.1-706R	32.9-36.1	7	0.6
037.6-706R	34.4-37.6	7	0.6
038.1-706R	34.9-38.1	7	0.6
039.6-706R	36.4-39.6	7	0.6
041.0-706R	37.8-41	7	0.6
042.5-706R	39.3-42.5	7	0.6
044.0-706R	40.8-44	7	0.6
045.5-706R	42.3-45.5	7	0.6
047.0-706R	43.8-47	7	0.6
048.5-706R	45.3-48.5	7	0.6
050.0-706R	46.8-50	7	0.6
051.5-706R	48.3-51.5	7	0.6
053.0-706R	49.8-53	7	0.6
054.5-706R	51.3-54.5	7	0.6
056.0-706R	52.8-56	7	0.6
057.5-706R	54.3-57.5	7	0.6
059.0-706R	55.8-59	7	0.6
060.5-706R	57.3-60.5	7	0.6
062.0-706R	58.8-62	7	0.6
063.5-706R	60.3-63.5	7	0.6
065.0-706R	61.8-65	7	0.6
066.5-706R	63.3-66.5	7	0.6
068.0-706R	64.8-68	7	0.6
069.5-706R	66.3-69.5	7	0.6
071.0-706R	67.8-71	7	0.6
072.5-706R	69.3-72.5	7	0.6
074.0-706R	70.8-74	7	0.6
075.5-706R	72.3-75.5	7	0.6
077.0-706R	73.8-77	7	0.6
078.5-706R	75.3-78.5	7	0.6
080.0-706R	76.8-80	7	0.6
081.5-706R	78.3-81.5	7	0.6
083.0-706R	79.8-83	7	0.6
084.5-706R	81.3-84.5	7	0.6
086.0-706R	82.8-86	7	0.6
087.5-706R	84.3-87.5	7	0.6
089.0-706R	85.8-89	7	0.6
090.5-706R	87.3-90.5	7	0.6
092.0-706R	88.8-92	7	0.6
093.5-706R	90.3-93.5	7	0.6
095.0-706R	91.8-95	7	0.6
096.5-706R	93.3-96.5	7	0.6
098.0-706R	94.8-98	7	0.6
099.5-706R	96.3-99.5	7	0.6
101.0-706R	97.8-101	7	0.6
102.5-706R	99.3-102.5	7	0.6
104.0-706R	100.8-104	7	0.6
105.5-706R	102.3-105.5	7	0.6
107.0-706R	103.8-107	7	0.6
108.5-706R	105.3-108.5	7	0.6
110.0-706R	106.8-110	7	0.6
111.5-706R	108.3-111.5	7	0.6
113.0-706R	109.8-113	7	0.6
114.5-706R	111.3-114.5	7	0.6
116.0-706R	112.8-116	7	0.6
117.5-706R	114.3-117.5	7	0.6
119.0-706R	115.8-119	7	0.6
120.5-706R	117.3-120.5	7	0.6

Feature-------------------------------------------------------------------------------------------------------------------------

360° StepLess - gives uniform compression and surface pressure
Clamp Ear - compensates for component tolerances, barb size and hose material
Dimple in Clamp Ear - Increases clamping force
Burr-free strip edges to reduce material abrasion of hose
Single Ear Hose Clamp kit are flexible and ductile with wide adjustable size range
Tfurther Single Ear Hose Clamp attach hoses for fitting hoses in confined spaces to prevent flow leakage. Easy to tighten or loosen for easy installation.

Advantage--------------------------------------------------------------------------------------------------------------------

Lightweight, less interference.
Uniform surface compression
360° Seal Protection
Anti-Rust
Anti-oxidation
Anti-corrosion
High Hardness and Durable
Non-toxic and Pollution-Free

Application--------------------------------------------------------------------------------------------------------------------

Single Ear Hose Clamps are a fairly simple device for connecting a hose to a pipe or a fitting like a hose barb connection. The clamp is a metal band with a protruding “ear,” the sides of which are forced together to tighten the ring around a hose. Once the clamp is on, the hose goes over the pipe or pipe fitting.

Single Ear Hose Clamps are used in securing hoses, pipe, cable, tube, fuel lines etc. Perfect to apply in automotive, industrial, boat/marine, shield, household etc. both indoor or outdoor.

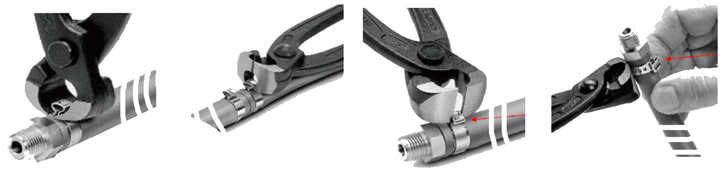

correct installation
