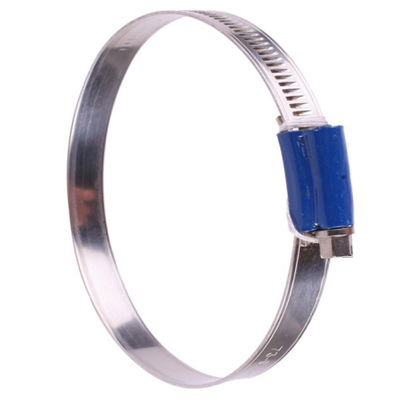

blue housing British type hose clamp

Description--------------------------------------------------------------------------------------------------------------------

Blue housing British type worm drive hose  clamps feature non-perforated bands to prevent breakage, along with rolled up, round band edges to minimize wear and the risk of leaks. Hex head worm screw and vibration-proof six degree thread pitch provides superior clamping and sealing, and allows these clamps to be used over and over.

Material-------------------------------------------------------------------------------------------------------------------------

• W1: Band, housing and screw are zinc plated steel.

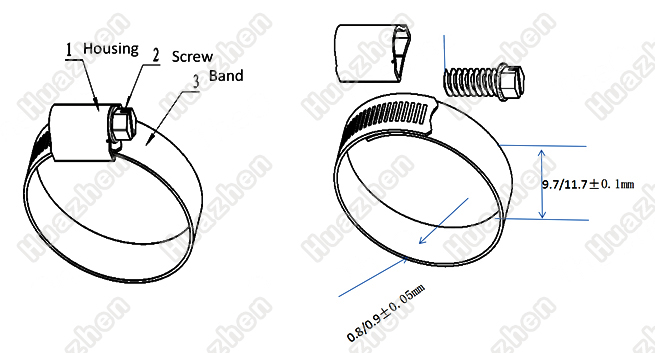

Dimension----------------------------------------------------------------------------------------------------------------------

Tightening Torque------------------------------------------------------------------------------------------------------

• Free Torque: 9.7mm&11.7mm  ≤ 1.0N.m
• Load Torque: 9.7mm  band  ≥ 3.5N.m  & 11.7mm  band ≥ 5.0N.m

Feature----------------------------------------------------------------------------------------------------------------------

• Simple housing structure
• Excellent leak tightness
• Uniform pipe seal
• Wide range of diameter
• Good pipe protection
• High mounting force
• Round edge, no burr, no deformation,can be reused

Application-----------------------------------------------------------------------------------------------------------------

British Type Hose Clamp With Tube Housing are used for the connection of soft and hard pipes on pipeline transportation equipment such as automobiles, trains, ships, water supply systems, beer machines, coffee machines, beverage machines, medical equipment, petrochemicals, etc.

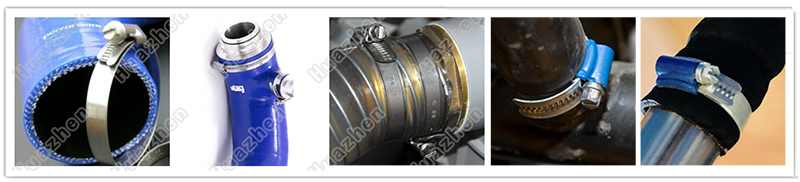

You can see some usage scenario in below picture.
