Description--------------------------------------------------------------------------------------------------------------------

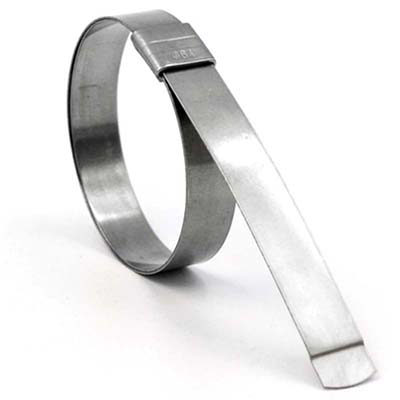

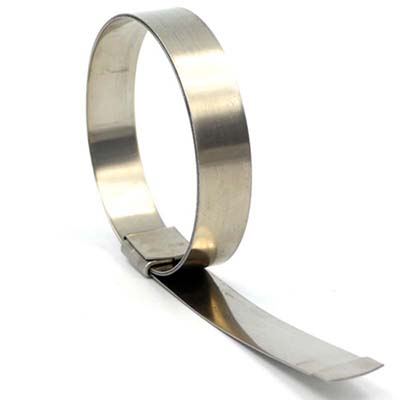

Throbbing clamps(belt clamps) is a single -use hose clip that lock with impact from a center punch tool this clamp need to be tightened ,cut,and locked using special tools. Usage :Machinery vehicle and Fire fighting device.
Throbbing clamps (belt clamps) are stainless steel products mainly used for industrial binding. The Throbbing clamps (belt clamps) product is not limited by the shape and size of the bundled object. The simple buckle structure simplifies the complexity of the traditional hoop.
Material-------------------------------------------------------------------------------------------------------------------------
- W1 - carbon steel with zinc plated
- W4 - SS201/301/304

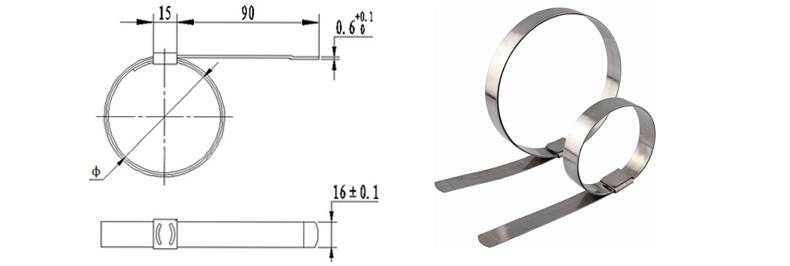

Dimension---------------------------------------------------------------------------------------------------------------------
Size |
Available Band Width (in mm) |
in mm |
in inch |
32 |
1-1/4" |
6.3 |
15 |
|
35 |
1-3/8" |
6.3 |
15 |
|
38 |
1-1/2" |
6.3 |
15 |
|
44 |
1-3/4" |
6.3 |
15 |
|
51 |
2" |
6.3 |
15 |
19 |
57 |
2-1/4" |
6.3 |
15 |
19 |
64 |
2-1/2" |
|
15 |
19 |
70 |
2-3/4" |
|
15 |
19 |
76 |
3" |
|
15 |
19 |
89 |
3-1/2" |
|
15 |
19 |
102 |
4" |
|
15 |
19 |
114 |
4-1/2" |
|
15 |
19 |
127 |
5" |
|
15 |
19 |
152 |
6" |
|
15 |
19 |
178 |
7" |
|
15 |
19 |
203 |
8" |
|
15 |
19 |
Feature-------------------------------------------------------------------------------------------------------------------------
- Designed for quick installation highest clamping force and gap-free inside diameter.
- The good fastening performance ensures the safety of the bundled object.
- The Throbbing clamps (belt clamps) is anti-corrosive and high temperature resistant

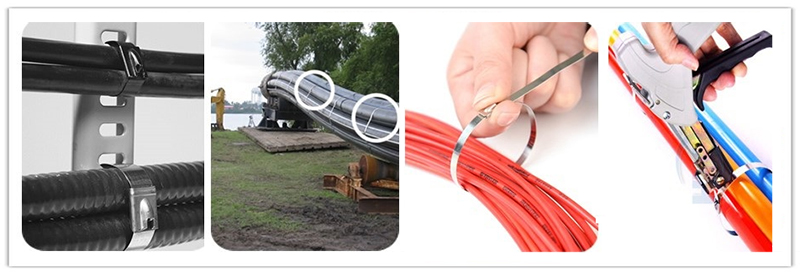

Application--------------------------------------------------------------------------------------------------------------------
Used in all models, vans, small cars, off-road vehicles, commercial vehicles, passenger cars, etc.
