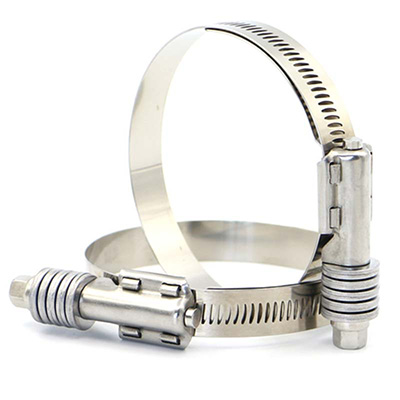

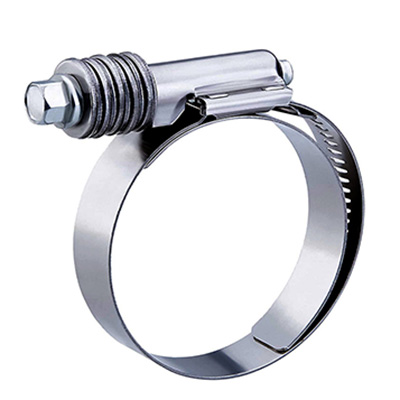

High constant torque hose clamp
High constant torque hose clamp High constant torque hose clamp

High constant torque hose clamp

Product Tags : American type hose clamp
Product Attributes :

Band width: 9/16”(14.2mm), 5/8”(15.8mm)

Band thickness: 0.024” (0.6mm)

Hex head screw: 5/16” (7.9mm) width

Standard: SAE J1508

Under RoHS & REACH standard

Product Description

Description--------------------------------------------------------------------------------------------------------------------

Constant torque hose clamp is used to attach fittings to hoses and designed to react to changes in hose systems by increasing or decreasing in diameter as the system expands or contracts. The Constant torque hose clamp band is made from stainless steel to provide resistance to scaling and corrosion, and stainless steel screw resists erosion.

  • The recommended installation torque is ≥15N.m

Material-------------------------------------------------------------------------------------------------------------------------

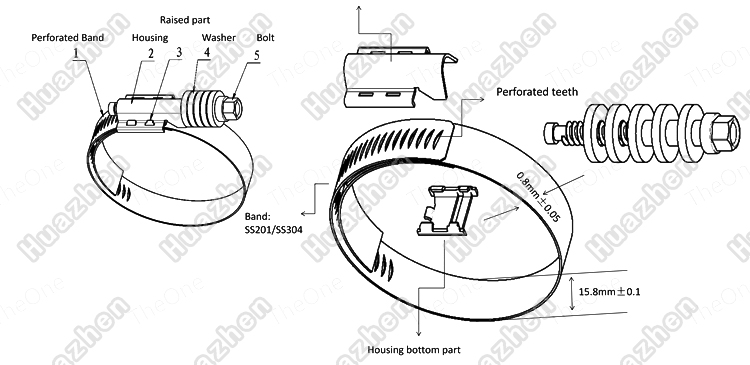

The housing, washers and screws can be made of 301, 302, 304, 410 grade stainless steel, which has good corrosion resistance. In addition, galvanized stainless steel can be used, and other material combinations can be provided upon request.

  • W2 - Band/Hosing SS301/304, washer SS410, screw carbon steel with zinc plated
  • W4 - Washer SS410, other parts SS301/304

Dimension----------------------------------------------------------------------------------------------------------------------

Band Width Band Thickness Dimension Range
in mm in inch
14.2mm 0.65mm 17-32mm 11/16"-1 1/4"
14.2mm 0.65mm 21-38mm 13/16"- 1 1/2"
14.2mm 0.65mm 21-44mm 13/16"- 1 3/4"
14.2mm 0.65mm 27-51mm 1 1/16"- 2"
14.2mm 0.65mm 33-57mm 1 5/16"- 2 1/4"
14.2mm 0.65mm 40-64mm 1 9/16"- 2 1/2"
14.2mm 0.65mm 46-70mm 1 13/16"- 2 3/4"
14.2mm 0.65mm 52-76mm 2 1/16"- 3"
14.2mm 0.65mm 59-83mm 2 5/16"- 3 1/4"
14.2mm 0.65mm 65-89mm 2 9/16"- 3 1/2"
14.2mm 0.65mm 71-95mm 2 13/16"- 3 3/4"
15.8mm 0.7mm 26-45mm 1"- 1 3/4"
15.8mm 0.7mm 32-54mm 1 1/4"- 2 1/8"
15.8mm 0.7mm 45-67mm 1 3/4"- 2 5/8"
15.8mm 0.7mm 57-79mm 2 1/4"- 3 1/8"
15.8mm 0.7mm 70-92mm 2 3/4"- 3 5/8"
15.8mm 0.7mm 83-105mm 3 1/4"- 4 1/8"
15.8mm 0.7mm 95-118mm 3 3/4"- 4 5/8"
15.8mm 0.7mm 108-130mm 4 1/4"- 5 1/8"
15.8mm 0.7mm 121-143mm 4 3/4"- 5 5/8"
15.8mm 0.7mm 133-156mm 5 1/4"- 6 1/8"
15.8mm 0.7mm 146-168mm 5 3/4"- 6 5/8"
15.8mm 0.7mm 159-181mm 6 1/4"- 7 1/8"
15.8mm 0.7mm 172-194mm 6 3/4"- 7 5/8"
15.8mm 0.7mm 184-206mm 7 1/4"- 8 1/8"
15.8mm 0.7mm 197-219mm 7 3/4"- 8 5/8"
15.8mm 0.7mm 210-232mm 8 1/4"- 9 1/8"

Feature----------------------------------------------------------------------------------------------------------------------

  • Stainless steel band for resistance to scaling and corrosion
  • Stainless steel screw resists corrosion
  • Band width of 9/16” provides greater sealing area than standard-sized band
  • Inner liner covers band serrations to help prevent hose damage
  • Increased sealing reliability across a wide temperature range
  • Automatic re-tensioning during temperature changes
  • Inner liner helps to maintain consistent sealing pressure

Application-----------------------------------------------------------------------------------------------------------------

Constant torque hose clamp is widely used on the joints of oil, gas, liquid and rubber hose of the automobile, ship, tractor, sprinkler, gasoline engine, diesel engine and other mechanical equipment, and also in the Construction, fire and other fields of industry.

  • auto pipe
  • motor pipe , water pipe
  • cooling pipe
  • gas pipeect,etc.

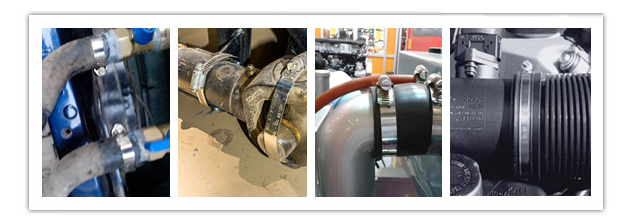

You can see some usage scenario in below picture.
