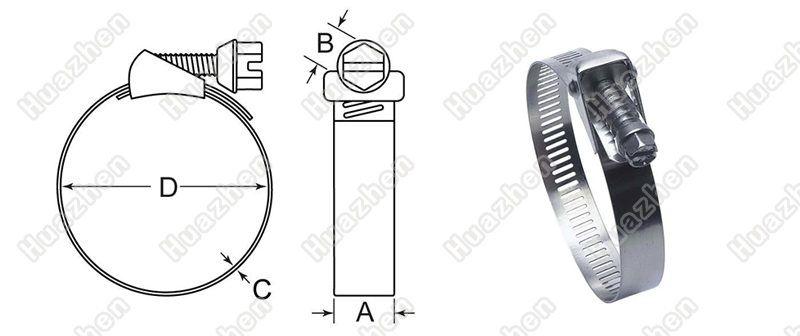

Band Width: 12.7mm / 14.2mm.
Band Thickness: 0.0235"
Screws: 5/16" hex head, slotted
Diameter: 5-1/8" to 6"
Material: stainless steel 304

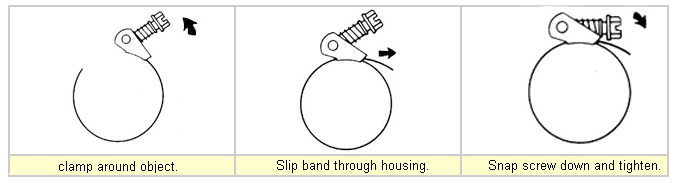

Quick Release hose clamp offers the customer speed, cost effectiveness and quality. The clip is first taken out of the box in its 'free' state. The screw is not engaged on the band but captured on a pivot washer at the screws base. The band is applied to the hose / tube / pipe etc. and fed through the housing, underneath the screw until hand tight. The screw is then swivelled down to lie on the band, as a normal hose clip, and then tightened with a screwdriver / nut runner. To take off the clip, simply un-screw the clip, lift the screw from the band, and pull. The clip is off. Simple!

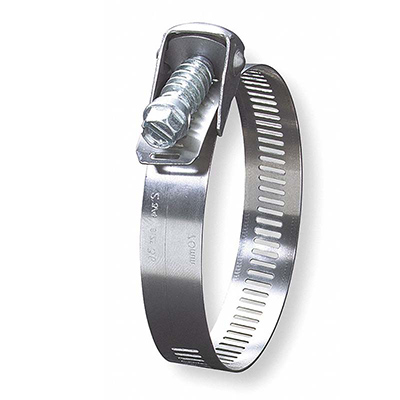

Quick Release Worm Drive hose clamps offer a tilting Worm Drive housing. These quick release hose clamp is ideal for rapid application and removal, especially for large diameter pipes and hoses.
| SAE Size | Dimension | |
| in mm | in inch | |
| 12 | 13-32 | 1/2"-1 1/4" |
| 20 | 19-44 | 3/4"- 1 3/4" |
| 24 | 26-51 | 3/4"- 2" |
| 28 | 26-57 | 1"- 2 1/4" |
| 36 | 26-70 | 1"- 2 3/4" |
| 48 | 38-89 | 1"- 3 1/2" |
| 56 | 25-101 | 1" - 4" |
| 72 | 51-127 | 2" - 5" |
| 88 | 51-152 | 2" - 6" |
| 104 | 44-178 | 2" - 7" |
| 116 | 44-197 | 1 3/4" -7 3/4" |
| 128 | 44-217 | 4 1/4" -8 1/2" |
| 136 | 44-228 | 1 3/4" - 9" |
| 152 | 51-154 | 2" - 10" |
| 188 | 52-312 | 2" - 12 1/4" |
Quick Release Hose Clamp is that it makes both installation and removal faster and more convenient than traditional hose clamps. Furthermore, the adjustable-range is longer. The one-size quick-release hose clamp can be used for multi-size hoses.
American type quick release hose clamp is mainly used for the quick switching of the equipment to the seal at the interface of the air duct and the dust passage, which can quickly achieve the tightness. Need to improve work efficiency. At the same time, due to its own characteristics, it is also very convenient when disassembling.
