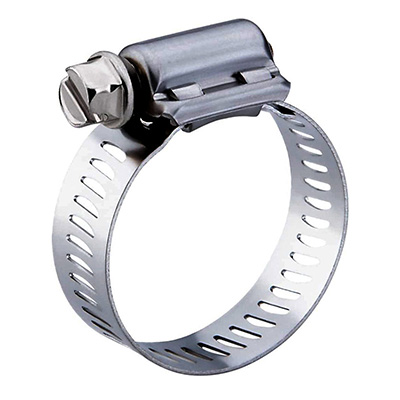

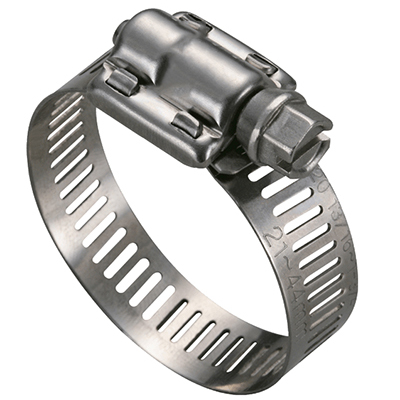

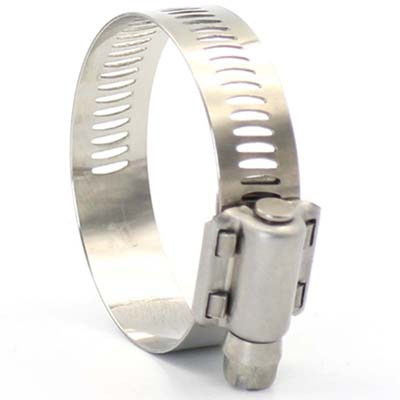

Power lock hose clamp

Product Tags : American type hose clamp

Product Attributes :

Material: W4 / Stainless steel 201/304

standard: Accordance with SAE standard

Screws: Hex Screws

Band Width: 2/1"(12.5mm), 9/16"(14.2mm), 5/8"(15.8mm)

Product Description

Description--------------------------------------------------------------------------------------------------------------------

To protect the hose from extrusion and shear, we extend an inner liner to cover the worm-gear slots.
There are no bumps under the housing to jeopardize the concentricity of the seal, and no laminated coverings to disintegrate under heat, ultraviolet, chemical or corrosive attacks.

Material-------------------------------------------------------------------------------------------------------------------------

W1 - All parts carbon steel with zinc plated
W2 - Hosing and screw carbon steel, band SS201/SS301/SS304
W4 - All parts stainless steel 201/301/304

Torque---------------------------------------------------------------------------------------------------------------------------

The recommended installation torque is ≥6.5N.m
Break Toeque ≥7.M
Free Torque ≤1.N.M

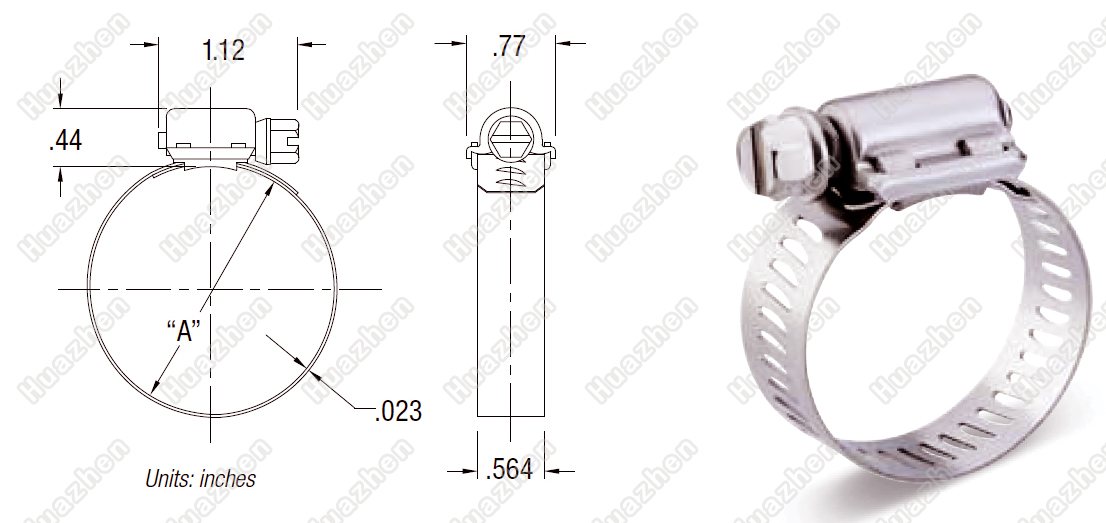

Dimension----------------------------------------------------------------------------------------------------------------------

Power lock hose clamp

Size Min	Size Max	Band Width	Thickness
13mm	19mm	12.7/14.2/15.8mm	0.6/0.7/0.8mm
16mm	25mm	12.7/14.2/15.8mm	0.6/0.7/0.8mm
18mm	32mm	12.7/14.2/15.8mm	0.6/0.7/0.8mm
21mm	38mm	12.7/14.2/15.8mm	0.6/0.7/0.8mm
21mm	44mm	12.7/14.2/15.8mm	0.6/0.7/0.8mm
27mm	51mm	12.7/14.2/15.8mm	0.6/0.7/0.8mm
33mm	57mm	12.7/14.2/15.8mm	0.6/0.7/0.8mm
40mm	63mm	12.7/14.2/15.8mm	0.6/0.7/0.8mm
46mm	70mm	12.7/14.2/15.8mm	0.6/0.7/0.8mm
52mm	76mm	12.7/14.2/15.8mm	0.6/0.7/0.8mm
59mm	82mm	12.7/14.2/15.8mm	0.6/0.7/0.8mm
65mm	89mm	12.7/14.2/15.8mm	0.6/0.7/0.8mm
72mm	95mm	12.7/14.2/15.8mm	0.6/0.7/0.8mm
78mm	101mm	12.7/14.2/15.8mm	0.6/0.7/0.8mm
84mm	108mm	12.7/14.2/15.8mm	0.6/0.7/0.8mm
91mm	114mm	12.7/14.2/15.8mm	0.6/0.7/0.8mm
105mm	127mm	12.7/14.2/15.8mm	0.6/0.7/0.8mm
117mm	140mm	12.7/14.2/15.8mm	0.6/0.7/0.8mm
130mm	153mm	12.7/14.2/15.8mm	0.6/0.7/0.8mm
142mm	165mm	12.7/14.2/15.8mm	0.6/0.7/0.8mm
155mm	178mm	12.7/14.2/15.8mm	0.6/0.7/0.8mm

Feature------------------------------------------------------------------------------------------------------------------------

Power lock hose clamp composed of adjustable screws, hoop cover and steel belt, the steel belt is arranged with rectangular through hole, with the characteristics of large torque, high fastness, and unlimited length, can be easily used in some large volume, outdoor equipment strapping.

Application--------------------------------------------------------------------------------------------------------------------

Power lock hose clamp is widely used on the joints of oil, gas, liquid and rubber hose of the automobile, ship, tractor, sprinkler, gasoline engine, diesel engine and other mechanical equipment, and also in the Construction, fire and other fields of industry.

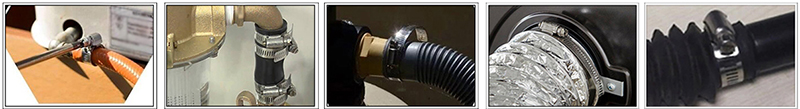

You can see some usage scenario in below picture.
