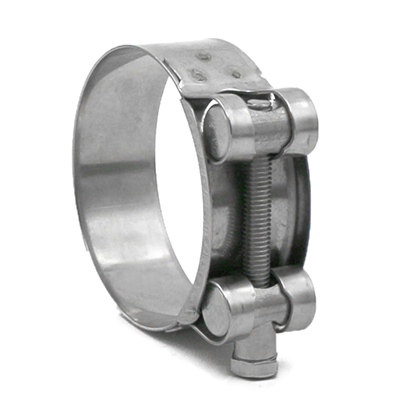

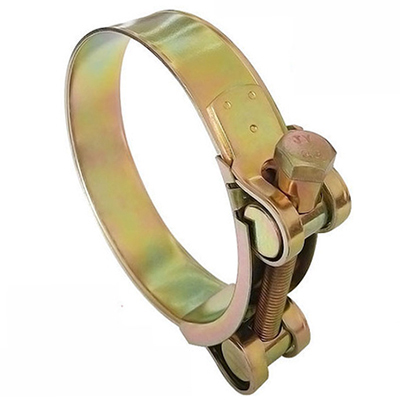

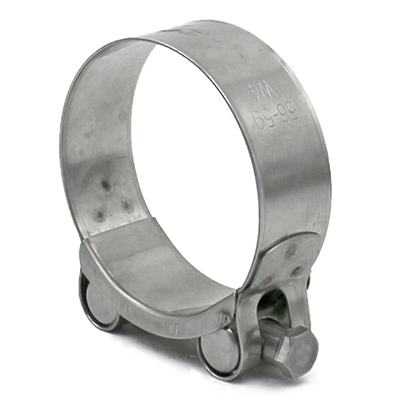

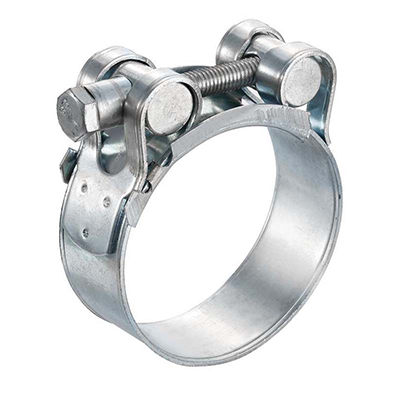

Single bolt hose clamp

Product Tags : Bolt hose clamp

Product Attributes :

Material: W1 / W2 / W3 / W4

Size: 17~19mm – 242mm~250mm

Band Width : 18mm / 20mm / 22mm / 24mm / 26mm

Band Thickness: 0.6mm/0.8mm/ 1mm/1.2mm/ 1.5mm/ 1.7mm

Material : Stainless Steel，Galvanised steel iron,Zinc-plated,Mild steel

Applications: Automotive,industry,mining,marine, hardwares etc.

Product Description

Description--------------------------------------------------------------------------------------------------------------------

Single bolt hose clamp used on a variety of hoses for securing in couplings and on to fixed pipework. A wide band width and non-slip bolt mechanism ensure a secure grip when higher torque is required.

The heavy duty single bolt super clamp is an ideal fixing for flexible suction or pressure hoses. The fittings are very precise so make sure that you order the correct size for your suction hose or pressure hose.

Material-------------------------------------------------------------------------------------------------------------------------

W1 - All parts carbon steel with zinc plated
W2 - Bolt and shaft carbon steel, band SS201/SS301/SS304
W4 - All parts stainless steel 201/301/304
W5 - All parts stainless steel 316

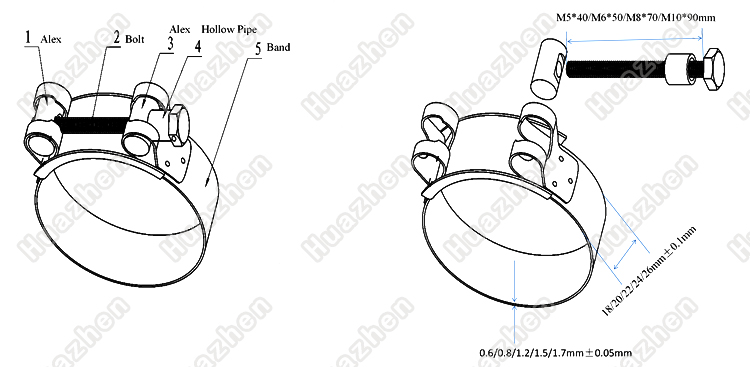

Dimension----------------------------------------------------------------------------------------------------------------------

Size	Band Width	Screw	Band Thickness(W1)	Band Thickness(W2/W3/W4)	QTY/Carton	Break Torgae
17-19mm	18mm	M5×40	0.6mm	0.6mm	250	5Nm
19-21mm	18mm	M5×40	0.6mm	0.6mm	250	5Nm
20-22mm	18mm	M5×40	0.6mm	0.6mm	250	5Nm
21-23mm	18mm	M5×40	0.6mm	0.6mm	250	5Nm
23-25mm	18mm	M5×40	0.6mm	0.6mm	250	5Nm
26-28mm	18mm	M5×40	0.6mm	0.6mm	250	5Nm
29-31mm	20mm	M6×50	0.8mm	0.6mm	250	15Nm
32-35mm	20mm	M6×50	0.8mm	0.6mm	250	15Nm
36-39mm	20mm	M6×50	0.8mm	0.6mm	100	15Nm
38-41mm	20mm	M6×50	0.8mm	0.6mm	100	15Nm
40-43mm	20mm	M6×50	0.8mm	0.6mm	100	15Nm
43-46mm	20mm	M6×50	1.2mm	0.8mm	100	15Nm
44-47mm	22mm	M6×55	1.2mm	0.8mm	100	15Nm
48-51mm	22mm	M6×55	1.2mm	0.8mm	100	15Nm
52-55mm	22mm	M6×55	1.2mm	0.8mm	100	15Nm
56-59mm	22mm	M6×55	1.2mm	0.8mm	100	15Nm
60-63mm	22mm	M6×55	1.2mm	0.8mm	50	15Nm
64-67mm	22mm	M8×70	1.2mm	0.8mm	50	25Nm
68-73mm	24mm	M8×70	1.5mm	0.8mm	50	25Nm
74-79mm	24mm	M8×70	1.5mm	0.8mm	50	25Nm
76-80mm	24mm	M8×70	1.5mm	0.8mm	50	25Nm
80-85mm	24mm	M8×70	1.5mm	0.8mm	50	25Nm
86-91mm	24mm	M8×70	1.5mm	0.8mm	50	25Nm
92-97mm	24mm	M8×70	1.5mm	0.8mm	50	25Nm
98-103mm	24mm	M8×70	1.5mm	0.8mm	50	25Nm
104-112mm	24mm	M8×80	1.5mm	0.8mm	50	25Nm
113-121mm	24mm	M8×80	1.5mm	0.8mm	25	25Nm
122-130mm	24mm	M8×80	1.5mm	0.8mm	25	25Nm
131-139mm	26mm	M10×90	1.7mm	1mm	25	40Nm
140-148mm	26mm	M10×90	1.7mm	1mm	25	40Nm
149-161mm	26mm	M10×110	1.7mm	1mm	25	40Nm
162-174mm	26mm	M10×110	1.7mm	1mm	25	40Nm
175-187mm	26mm	M10×110	1.7mm	1mm	25	40Nm
188-200mm	26mm	M10×110	1.7mm	1mm	25	40Nm
201-213mm	26mm	M10×110	1.7mm	1mm	25	40Nm
214-226mm	26mm	M10×110	1.7mm	1mm	25	40Nm
227-239mm	26mm	M10×110	1.7mm	1mm	25	40Nm
240-252mm	26mm	M10×110	1.7mm	1mm	25	40Nm

Feature---------------------------------------------------------------------------------------------------------------------------

Moderate price
Bigger adjusting range
Evenly stress when fastening
Can smoothly , can be reused
Ideal fastener of all kinds of gentle and harsh pipes
Wrest resistant and high crushing strength
Corrosion resistant , and protects the rubber surface is not damaged

Application---------------------------------------------------------------------------------------------------------------------

Single bolt hose clamp are very popular to widely used in automobiles, industry, agriculture, auto pipe , motor pipe , water pipe , cooling pipe etc

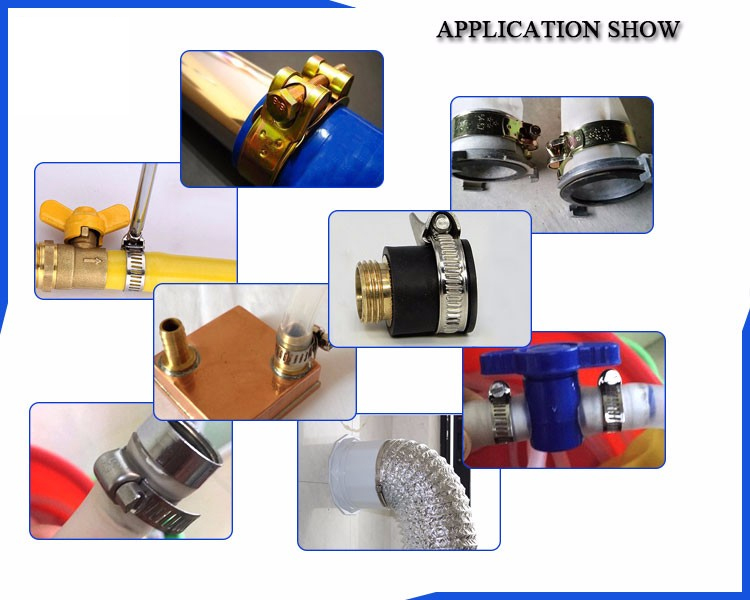

You can see some usage scenario in below picture.
