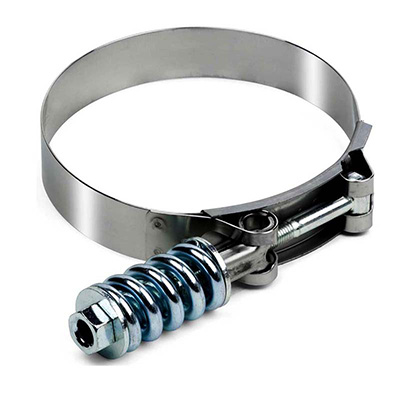

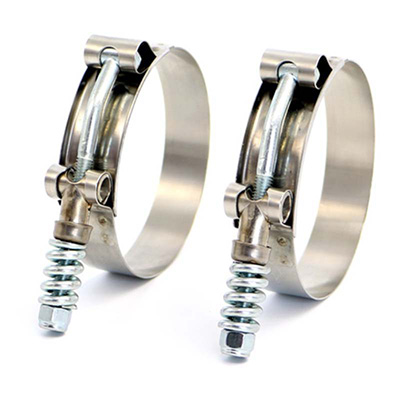

T bolt hose clamp with spring
T bolt hose clamp with spring T bolt hose clamp with spring

T bolt hose clamp with spring

Product Tags : Bolt hose clamp
Product Attributes :

Band Width: 19mm

Thickness: 0.6mm

Screw: M6*75

Loading Torque: 20N.m

Spring: White/yellow Galvanized

Material: Stainless steel:200 series and 300 series/galvanized iron

Product Description

Description--------------------------------------------------------------------------------------------------------------------

We are profession t bolt clamp manufacturer,Provide constant tensile performance to compensate for expansion and contraction during temperature fluctuations. Provide high strength and 360 degree sealing. Tighten with a 7/16" wrench or hex nut driver.

  • T bolt hose clamp with spring used for industrial, marine and vehicle applications to compensate for thermal expansion of hose or fitting connections
  • 301 Stainless Steel Band
  • Heavy duty large spring on spring-loaded T-Bolt clamp
  • Zinc Plated bolt and nylon insert locknut
  • Bolt/Nut/Spirng carbon steel with zinc plated
  • Uniform and stable sealing pressure
  • High strength

Material-------------------------------------------------------------------------------------------------------------------------

  • W2--Band/Bridge/Hosing/Trunnion/Cap AISI 300 stainless steel,

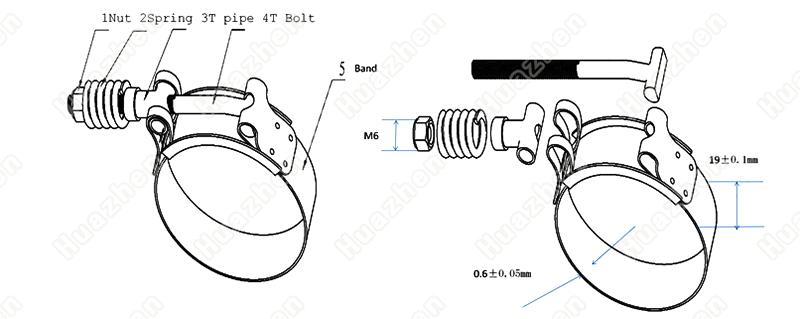

Dimension----------------------------------------------------------------------------------------------------------------------


T bolt hose clamp with spring
Size  in inch Band Width Thickness
63-70mm 2.48" - 2.76" 19mm 0.6mm
67-75mm 2.64" - 2.95" 19mm
0.6mm
70-78mm 2.76" - 3.07" 19mm
0.6mm
72-80mm 2.83" - 3.15" 19mm
0.6mm
73-81mm 2.87" - 3.19" 19mm
0.6mm
76-84mm 2.99" - 3.31" 19mm
0.6mm
77-85mm 3.03" - 3.35" 19mm
0.6mm
79-87mm 3.11" - 3.43" 19mm
0.6mm
83-90mm 3.27" - 3.54" 19mm
0.6mm
86-94mm 3.39" - 3.7" 19mm
0.6mm
87-95mm 3.43" - 3.74" 19mm
0.6mm
89-97mm 3.5" - 3.82" 19mm
0.6mm
92-100mm 3.62" - 3.94" 19mm
0.6mm
95-103mm 3.74" - 4.06" 19mm
0.6mm
99-106mm 3.9" - 4.17" 19mm
0.6mm
102-109mm 4.02" - 4.29" 19mm
0.6mm
103-110mm 4.06" - 4.33" 19mm
0.6mm
105-113mm 4.13" - 4.45" 19mm
0.6mm
107-115mm 4.21" - 4.53" 19mm
0.6mm
108-116mm 4.25" - 4.57" 19mm
0.6mm
111-119mm 4.37" - 4.69" 19mm
0.6mm
112-120mm 4.41" - 4.72" 19mm
0.6mm
114-122mm 4.49" - 4.8" 19mm
0.6mm
130-138mm 5.12" - 5.43" 19mm
0.6mm
132-140mm 5.2" - 5.51" 19mm
0.6mm
138-146mm 5.43" - 5.75" 19mm
0.6mm
140-148mm 5.51" - 5.83" 19mm
0.6mm
152-160mm 5.98" - 6.3" 19mm
0.6mm
155-164mm 6.1" - 6.46" 19mm
0.6mm
182-190mm 7.17" - 7.48" 19mm
0.6mm
187-195mm 7.36" - 7.68" 19mm
0.6mm

Feature--------------------------------------------------------------------------------------------------------------------------

  • T bolt hose clamp with spring can uto-adjusting diameter helps maintain constant tension throughout extremely low or very high temperatures and thermal cycling
  • Spring-loaded design provides constant band tension and tight fit without needing adjustments
  • Durable, long-lasting design that withstands thermal stress and provides a high level of vibration, shock, temperature, and corrosion resistance
  • Rounded edges reduce the risk of damage to parts being clamped, including hoses in critical applications
  • Double-plated 300 series stainless steel with self-locking nut, bolt, and spring

Application--------------------------------------------------------------------------------------------------------------------

We are profession t bolt clamp manufacturer,We provide a wide range of clamp diameters, we have the expertise and experience to design, engineer, and manufacture custom clamps to meet your specific application. Common industries using spring t-bolts include automotive, marine, and more!

T bolt hose clamp with spring is widely used in high vibration and large diameter applications common in heavy trucks,industrial machinery,off-road equipment,agricultural irrigation and machinery.

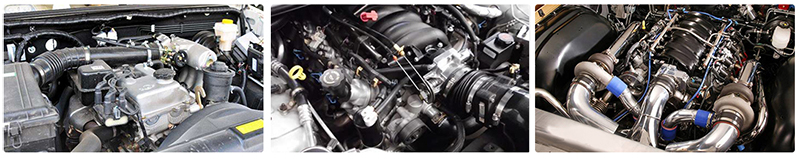

You can see some usage scenario in below picture.
